Dimensions (Linear / Form) Inspection (Gauging) Systems

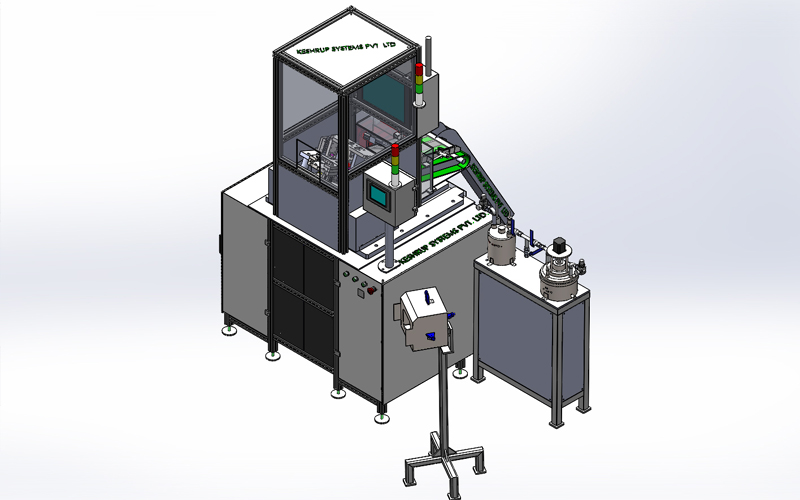

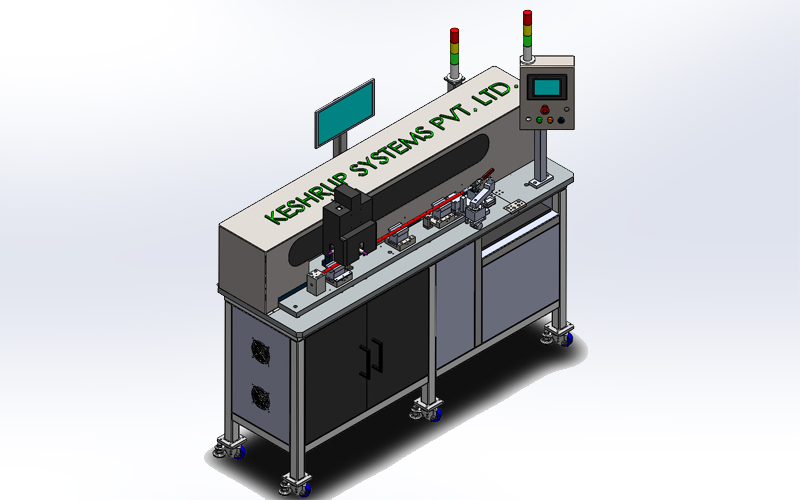

Final Inspection Station

Consist Of

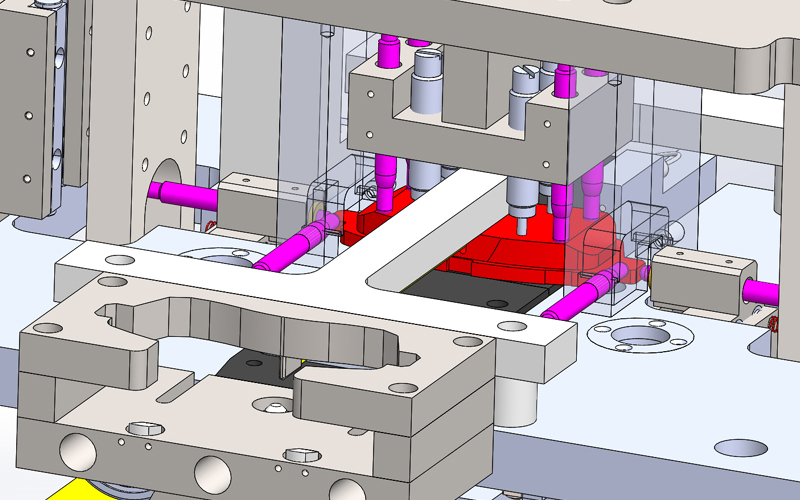

- To Check Linear & Form dimensions on Precision Parts, Part Fixtures to locate on specific Datums along with Setting Masters
- Gauging Electronics - LVDT Probes, Interfaces, Servo / Stepper Motor & Drive, Pneumatic Cylinders, - Electronic actuators, PLC / HMI, KurtSPC software, Industrial PC, Control Panel
- Highly accurate (< 10% R&R), Zero operator bias on Inspection Cycle
- Work as Standalone or as a Client on Company Intranet / LAN
Optional
- Bar Code / QR Code reader for linking Part tracking number with Measurement Data
- Ink / Laser Marking
- Integration with Robots/ Cobots in Automatic Manufacturing Cell
- PDI Reports based on Date / Time, Individual or Summary reports
Production capacity4500~5000 Parts in Single Production Shift
Inspection LocationFinal Inspection, End-Of-Line (EOL)
Delivery Time10~14 weeks
BudgetBasic Machine starts from Rs. 20L & above + Services + Taxes
